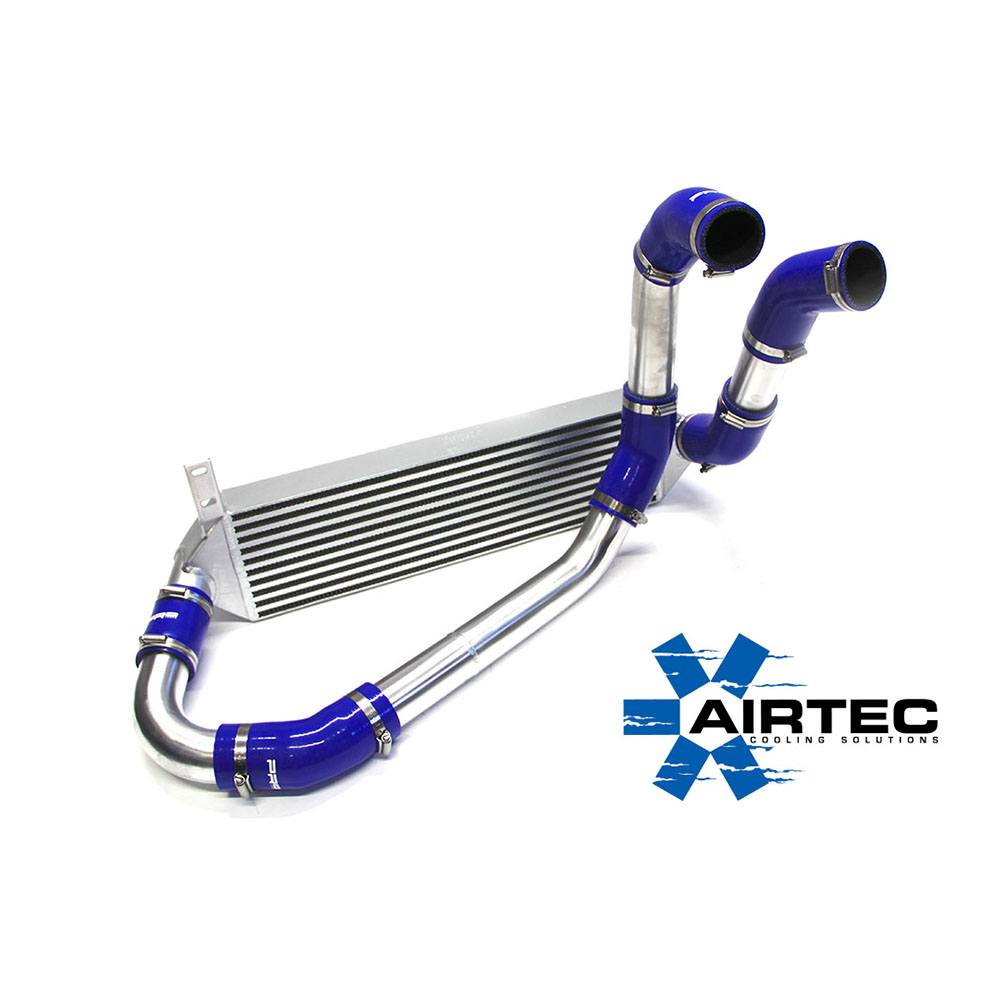

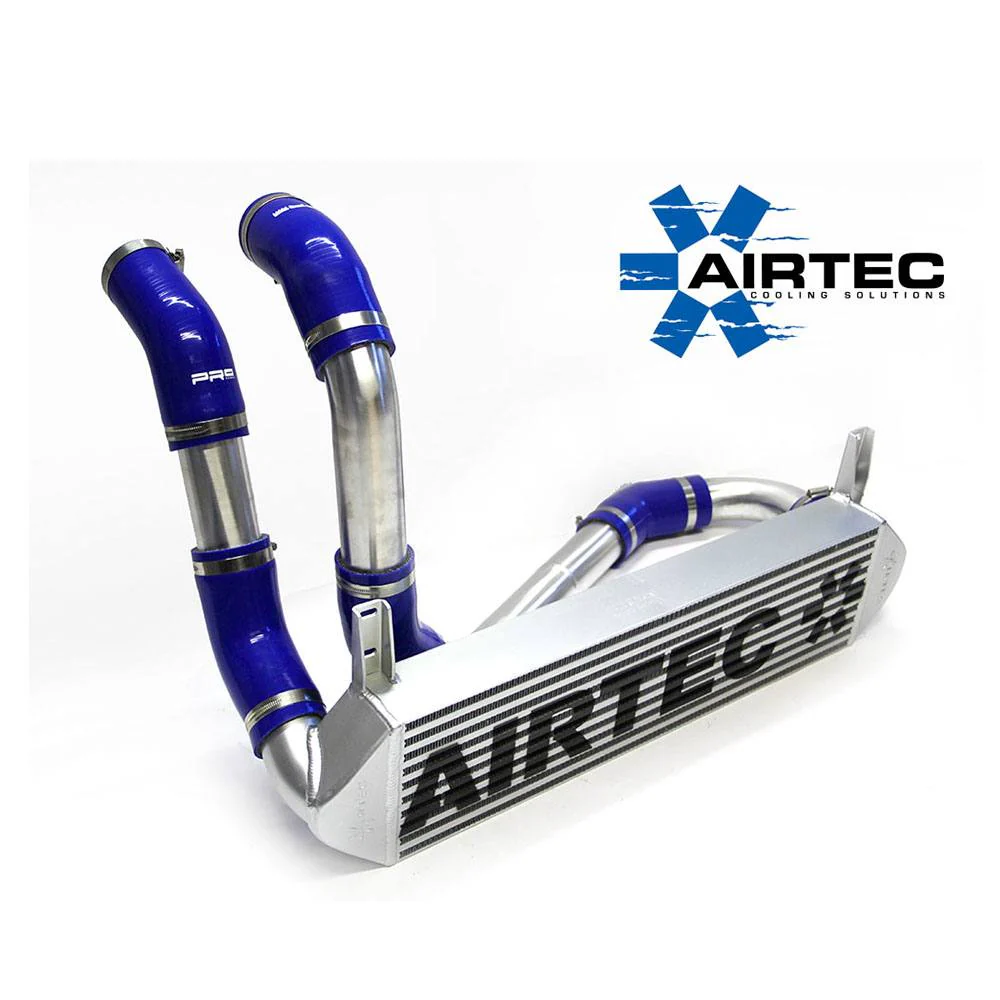

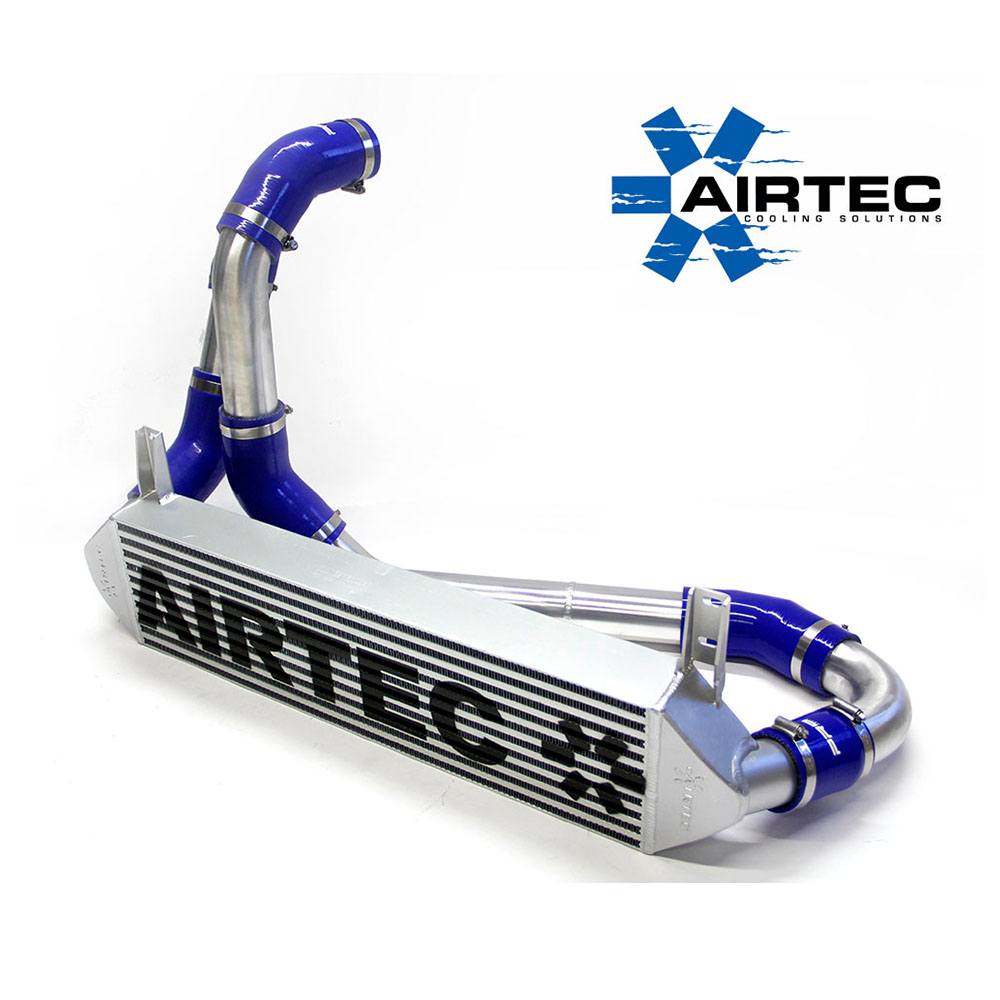

AIRTEC STAGE 2 INTERCOOLER UPGRADE FOR CITREON DS3

TECHNICAL DATA

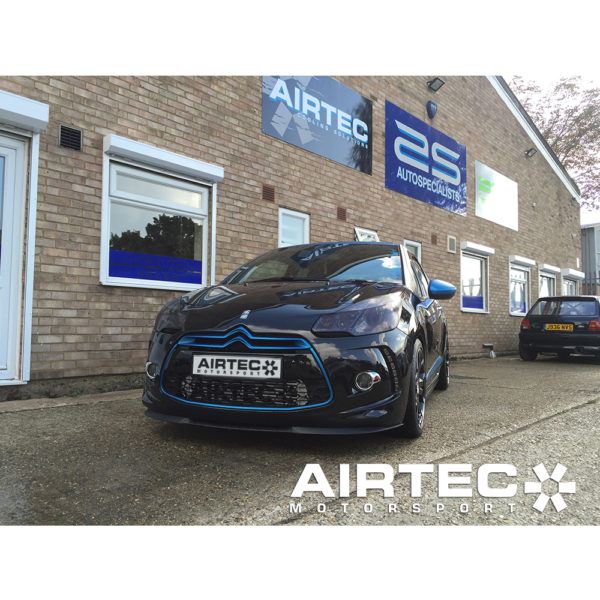

AIRTEC has now added a great addition to it’s growing range of performance intercoolers, in the way of this huge front mount for the Citreon DS3.

Great addition to any standard or remapped DS3s.

Features

• 60mm thick track proven bar and plate core, specked to AIRTEC design
• Airtec Cast end tanks for improved Airflow and un-beatable strength

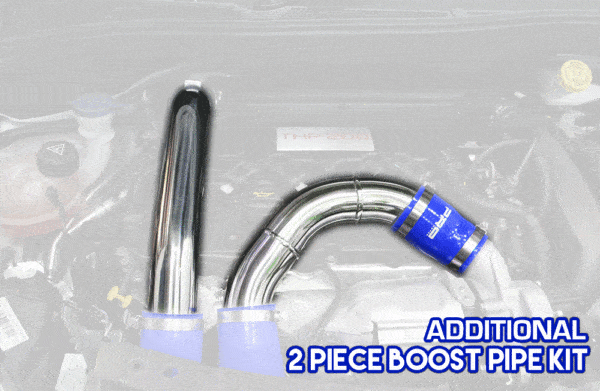

• Comes with silicone and alloy boost pipe connecting hoses – includes stainless clips
• Fitting takes less 2-3 hours, comes with fitting instructions
• 3 year -limited mileage warranty
• Available in Pro-Series satin Black only (not silver)
• AIRTEC Logo available @ no extra charge

Rolling road tested at AMD Essex.

Standard intercooler:
Dyno cell ambient temperature: 19 degrees.

Run 1

In – 166 degrees
Out – 99 degrees

Run 2

In – 191 degrees
Out – 109 degrees

AIRTEC Stage 1 twin pass intercooler:
Dyno cell ambient temperature: 19 degrees.

Run 1

In – 144 degrees
Out – 37 degrees

Run 2

In – 165 degrees
Out 42 degrees

Run 3

In – 170 degrees
Out – 46 degrees

On average the standard intercooler run at 208 bhp, seeing an 11bhp increase with the Airtec stage 1 twin pass intercooler fitted.
Test car fitted with Miltek cat back exhaust + sports cat, Forge intake system, stage 2 remap.

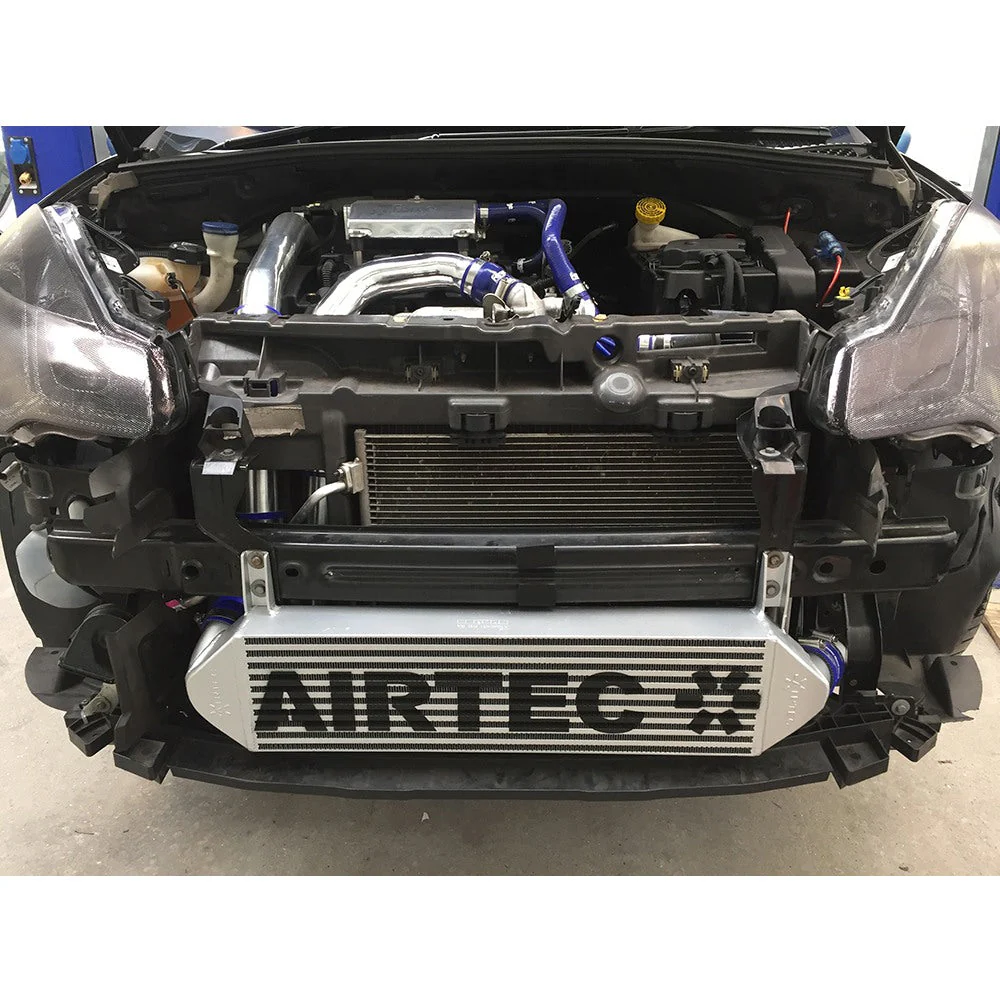

Huge surface area, but still allows plenty of airflow to top section of the radiator, this is essential for hotter climate countries.

Approximate dimensions:

60mm thick

175mm Height

760mm width
